Artifacts and markers

Evidence

Physical artifacts, stable hashes, and acceptance frames are kept with the public record so each hardware claim remains scoped and citable. Large raw videos are identified by hash rather than stored directly in git.

2026-08-26 physical wake acceptance

WAKE Accepted From the Built-In Keyboard

On the physical target laptop, PythOS reached the opt-in physical wake diagnostic after firmware exit, received the built-in keyboard byte stream, decoded wake plus Enter, and displayed accepted on the framebuffer.

target physical laptop input built-in keyboard command wake + Enter result accepted

Observed raw Set-1 sequence 11 91 1E 9E 25 A5 12 92 1C

Raw clip duration 40.638811 s

Raw clip size 366801558 bytes

Raw clip SHA-256 8deabe1c4dc3f8b659c81d7ab4bde149b58f8e75c61b4c9de08062a645d02dd9

This evidence proves the post-firmware keyboard byte path and wake recognizer on this specific physical machine. It does not claim USB HID, trackpad support, generic PC keyboard support, interrupt-driven physical input, authentication, or general shell control from the keyboard.

ADR 0074 defines the diagnostic gate and its claim boundary.

PythOS physical wake diagnostic showing input wake, raw keyboard bytes, and accepted on the target laptop — Acceptance frame extracted from the raw 40.64-second physical boot clip.

2026-08-28 no-write storage probe

O2 Micro SDHCI/eMMC Read Confirmed

After the normal boot diagnostic reached stage 19 / init block dev, the no-write hardware-probe image identified the target storage path as O2 Micro 1217:8620 SDHCI/eMMC and completed a read-only LBA0 probe.

bdf 01:00.0 vid:did 1217:8620 class 08 05 01 result emmc read

BAR0 00000000E8B01000

OCR C0FF8080

LBA0 checksum 000006F9

Nonzero bytes 0000000C

Photo SHA-256 690058616C26DC7A0034906B766465D540B6C3D22E0307CA09F79651C68441C6

This proves read-only SDHCI/eMMC controller/card access on this current target. It does not prove physical normal boot writes, object-store persistence, shell entry, or broad hardware support.

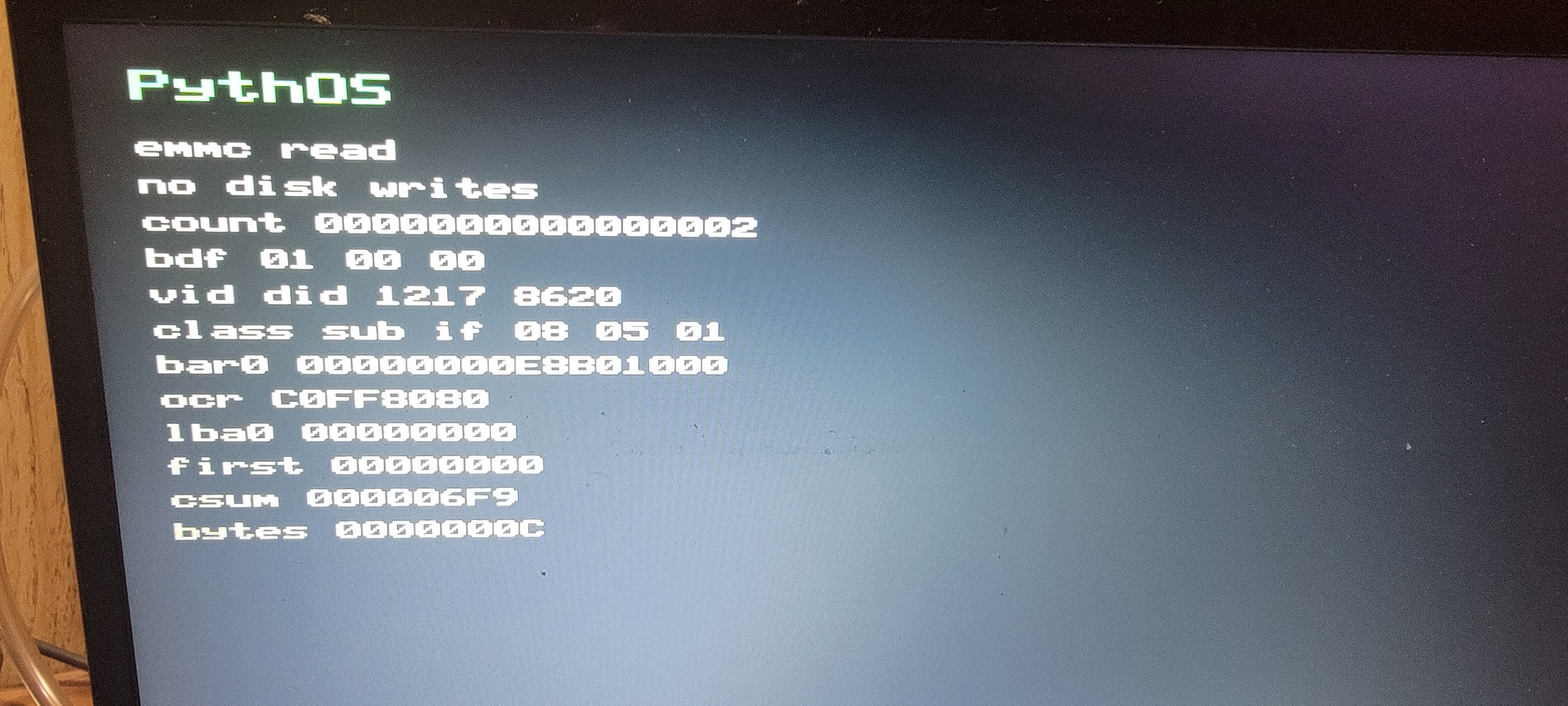

PythOS no-write hardware probe showing O2 Micro 1217:8620 SDHCI eMMC read evidence — Physical framebuffer report from the no-write hardware-probe payload.

2026-08-29 normal boot diagnostic

SDHCI/eMMC Candidate Reached Ring 3

The deployed normal diagnostic plus sdhci-emmc-backend image reached stage 37 / ring3 enter on the current physical target after the no-write probe identified O2 Micro 1217:8620 SDHCI/eMMC.

stage 37 label ring3 enter image normal SDHCI/eMMC result handoff

Deployed core SHA-256 1432589585001622FF623D8F7751D227AE3011561457C1173C411A07840EDBF8

Photo SHA-256 73DE7440513C54A574F21C7C5ADD8E02AF7362CAA98BDC254518D5BC4CF09AF8

The visible Enter Shell tile is retained framebuffer content from before ring-3 entry. This evidence does not prove trackpad input, framebuffer terminal output, physical shell input, or durable eMMC persistence.

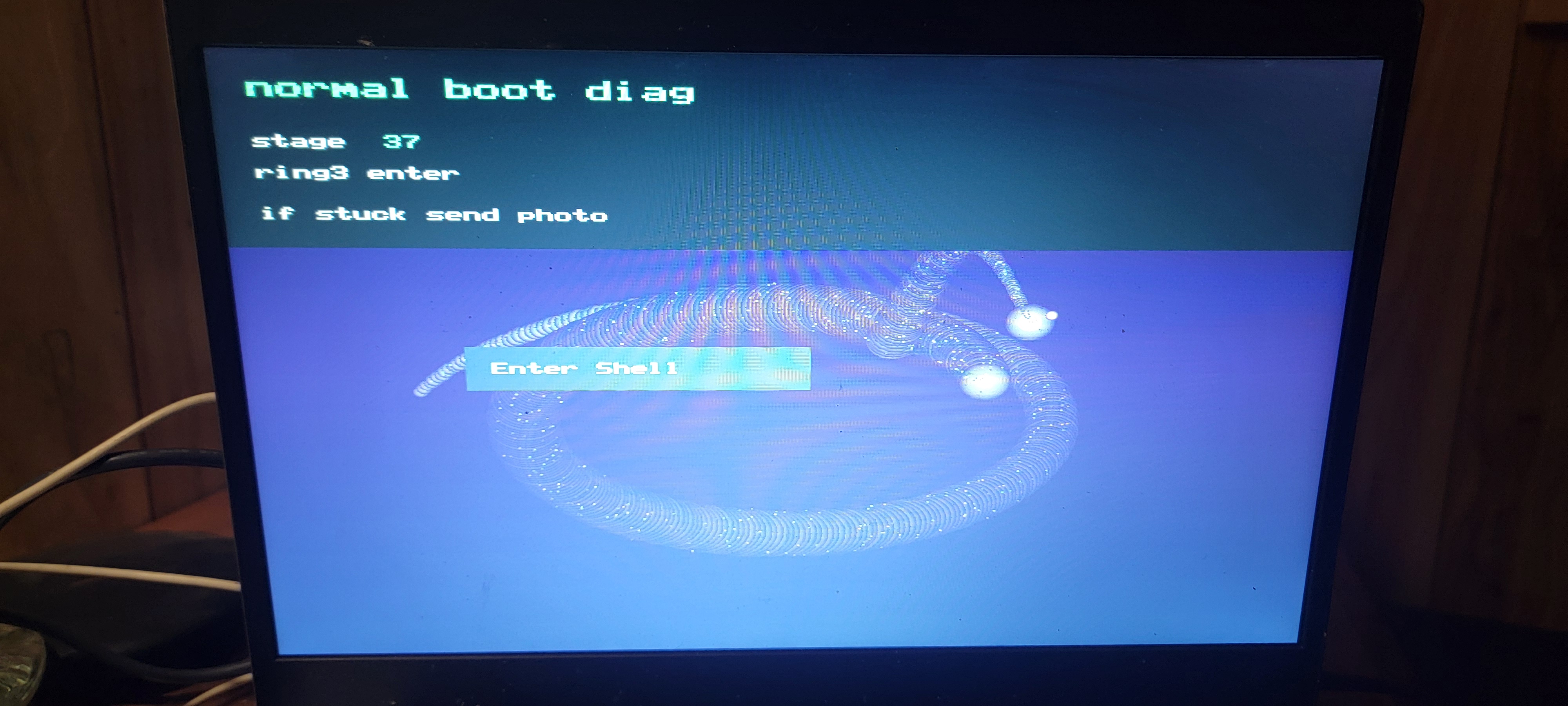

PythOS normal SDHCI eMMC diagnostic showing stage 37 ring3 enter on physical hardware — Physical framebuffer report from the deployed normal SDHCI/eMMC diagnostic candidate.

2026-08-31 no-write USB probe

AMD xHCI Register Read Confirmed

The opt-in usb-xhci-probe image was QEMU-accepted, deployed to the verified P: USB ESP target, and then booted on the physical machine. It mapped the selected xHCI BAR into PythCore page tables, read the xHCI register header, rendered framebuffer identity, and emitted NO_DISK_WRITES.

bdf 00:10.0 vid:did 1022:7914 class 0C 03 30 result xhci regs

QEMU acceptance USB_XHCI_PROBE_TEST_OK / QEMU_OUTCOME success

Physical BAR0 00000000E8C68000

Physical registers CAPLENGTH 20, HCIVERSION 0100, HCSPARAMS1 08000820, HCCPARAMS1 014040C3, USBSTS 00000009

External USB mouse Dell/PixArt 413c:301a behind Linux path usb 1-1

Built-in trackpad I2C HID ELAN0666:00 04F3:304B, not PS/2

Copy verification USB_XHCI_PROBE_VERIFY_OK files:8 bytes:3814456

Deployed core SHA-256 479588E4268C65E6F03EECAEF0534D7D5F4ADEEF9EBA0B1DD50D3549BF67D0AA

Photo SHA-256 EF950D8A3B9804635C99BDF04C49026A87912F79E2FDC13A393FAA21CF0481C8

This proves physical xHCI controller/register reachability on the current target. It does not claim USB enumeration, HID parsing, mouse movement, trackpad support, IRQ input, DMA rings, or broad USB support.

ADR 0078 defines the xHCI probe boundary.

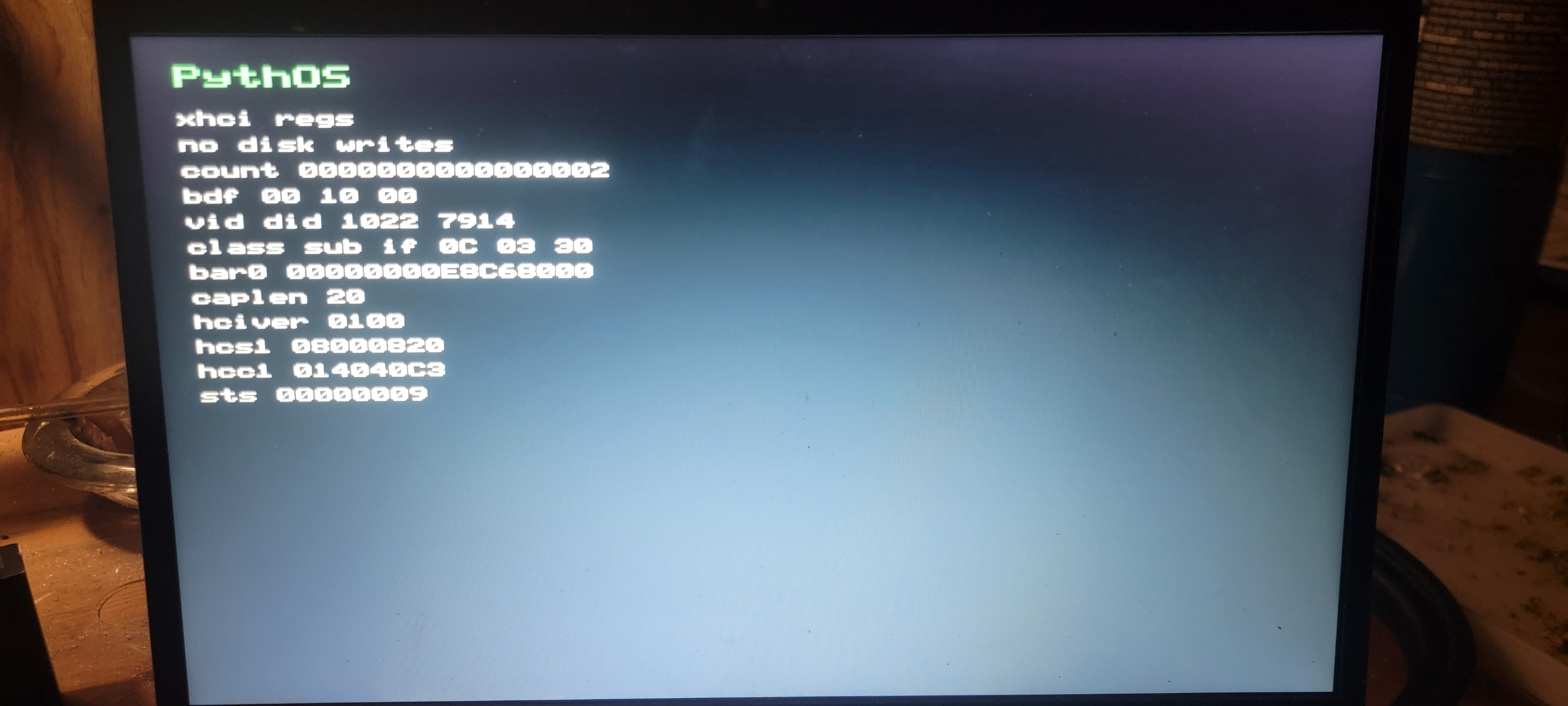

PythOS USB xHCI register probe showing AMD 1022:7914 xHCI registers and no disk writes on physical hardware — Physical framebuffer report from the deployed no-write USB/xHCI register probe.

2026-08-31 QEMU USB probe and deployment

xHCI Port Status Layer Added

The opt-in usb-xhci-port-probe image extends the no-write xHCI register probe with max-port decoding, xECP decoding, USB legacy-ownership observation, and up to eight PORTSC/PORTPMSC reads. It does not reset xHCI, claim ownership, allocate rings, enumerate USB devices, parse HID, or move a cursor.

qemu pass max ports 08 port base 0440 usb deployed

QEMU acceptance USB_XHCI_PORT_PROBE_TEST_OK / QEMU_OUTCOME success

Observed QEMU port port 5 PORTSC 00000E03, PORTPMSC 00000000

Ownership result xECP byte offset 0020, USB legacy-support capability absent

Copy verification USB_XHCI_PORT_VERIFY_OK files:8 bytes:3840440

Deployed core SHA-256 447D1F9CA8D97F8000F0905566628AE3B959C212E4E2B33C558220E436D94320

Physical port-status evidence for AMD 1022:7914 is pending. This entry records the QEMU-accepted diagnostic candidate and verified USB deployment only.

ADR 0079 defines the xHCI port-status probe boundary.

2026-08-31 QEMU hotplug, USB deployment, and physical video

xHCI Swap Port Diagnostic Added

The opt-in usb-xhci-swap-probe image handles the single-port hardware test case. It renders swap mouse now, waits while the boot USB can be removed, ignores the expected detach event, and polls read-only xHCI port-status registers for a later disconnected-to-connected mouse event.

qemu pass detach ignored connect port 5 usb deployed

QEMU acceptance USB_XHCI_SWAP_PROBE_TEST_OK / QEMU_OUTCOME success

Prompt marker SWAP_READY after FRAMEBUFFER_SWAP_READY

Ignored QEMU detach port 1 PORTSC 00001203 to 000202A0

Observed QEMU connect port 5 PORTSC 000002A0 to 00020EE1

Copy verification USB_XHCI_SWAP_CONNECT_VERIFY_OK files:8 bytes:3857656

Deployed core SHA-256 A11B480D37A0C0299B4D6D96080C506C533BC0D1E3492CE1876C3F4F1A269BFE

Observed physical connect port 5 PORTSC 000002A0 to 000202E1

Physical still SHA-256 20B2CCA74EB8FD23080943FB368147F3D56A884A09F753479A9E4D5FF9A038E8

The first physical attempt proved the previous build stopped on boot-USB removal before mouse insertion. The corrected physical image kept polling and recorded the later port-5 connect. This remains a no-write port-status observation layer, not xHCI ownership transfer, USB enumeration, HID parsing, or cursor movement.

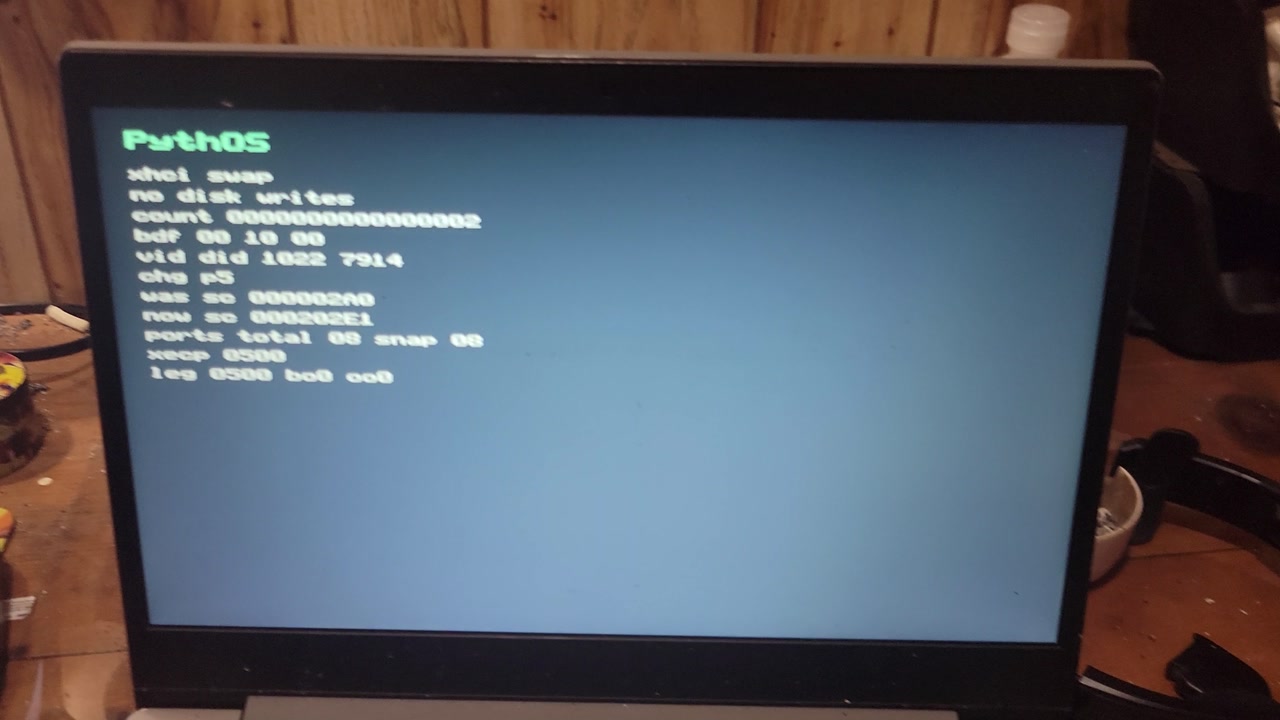

PythOS USB xHCI swap probe showing port 5 connect after boot USB removal on physical hardware — Physical framebuffer still from the corrected swap-port diagnostic video.

ADR 0080 defines the xHCI swap-port probe boundary.

2026-09-01 QEMU, USB deployment, and physical command-ring success

xHCI Command Ring Accepted On Hardware

The opt-in usb-xhci-command-probe image is the first write/DMA xHCI driver diagnostic. It reuses the swap-port flow, then resets and starts the controller, configures static page-aligned scratchpad and command/event DMA structures, resets the selected connected root port, completes a No-op Command, and completes Enable Slot in QEMU and on the physical AMD 1022:7914 controller.

qemu pass phys pass usb deployed port 06 noop cc 01 enable slot 01 slot 01 scratch 08

QEMU acceptance USB_XHCI_COMMAND_PROBE_TEST_OK / QEMU_OUTCOME success

Driver markers XHCI_SCRATCHPAD_COUNT=0, XHCI_COMMAND_RING_READY, XHCI_EVENT_RING_READY, XHCI_NOOP_COMMAND_COMPLETE, XHCI_ENABLE_SLOT_READY

Observed QEMU port port 5 PORTSC 00220E03 after reset

Physical scratchpad gate port 5 connect reached xhci cmd err / err 00000006, mapped to unsupported scratchpad buffers in the first image

Physical error frame SHA-256 A6D6271A065EA3B6547A28F69CCFDD37484F10B4266105A980255D2B1B24CB2E

Physical command-ring success BDF 00 10 00, vendor/device 1022 7914, port 06, slot 01, No-op CC 01, Enable Slot CC 01, USBSTS 00000000, PORTSC 00220603, scratchpad count 08

Physical success frame SHA-256 534B40C205D3BC4FE43F8BF0CBF6D0EFA0687E7F19E247BE08C94F818664AC52

USB deployment verified P: Lexar D70E PYTHOS_ESP; USB_XHCI_SCRATCHPAD_VERIFY_OK files:8 bytes:3949296

Deployed core SHA-256 5E65C5A697A443369CB9AAC11E4AADAB7A26888B920EC89F43BEC5F33CF8CC44

No-write marker PYTHOS:CORE:USB_XHCI_PROBE:NO_DISK_WRITES

This is physical command-ring acceptance. It does not prove USB addressing, descriptor reads, endpoint setup beyond the command ring, HID parsing, cursor movement, IRQ-driven input, or trackpad support.

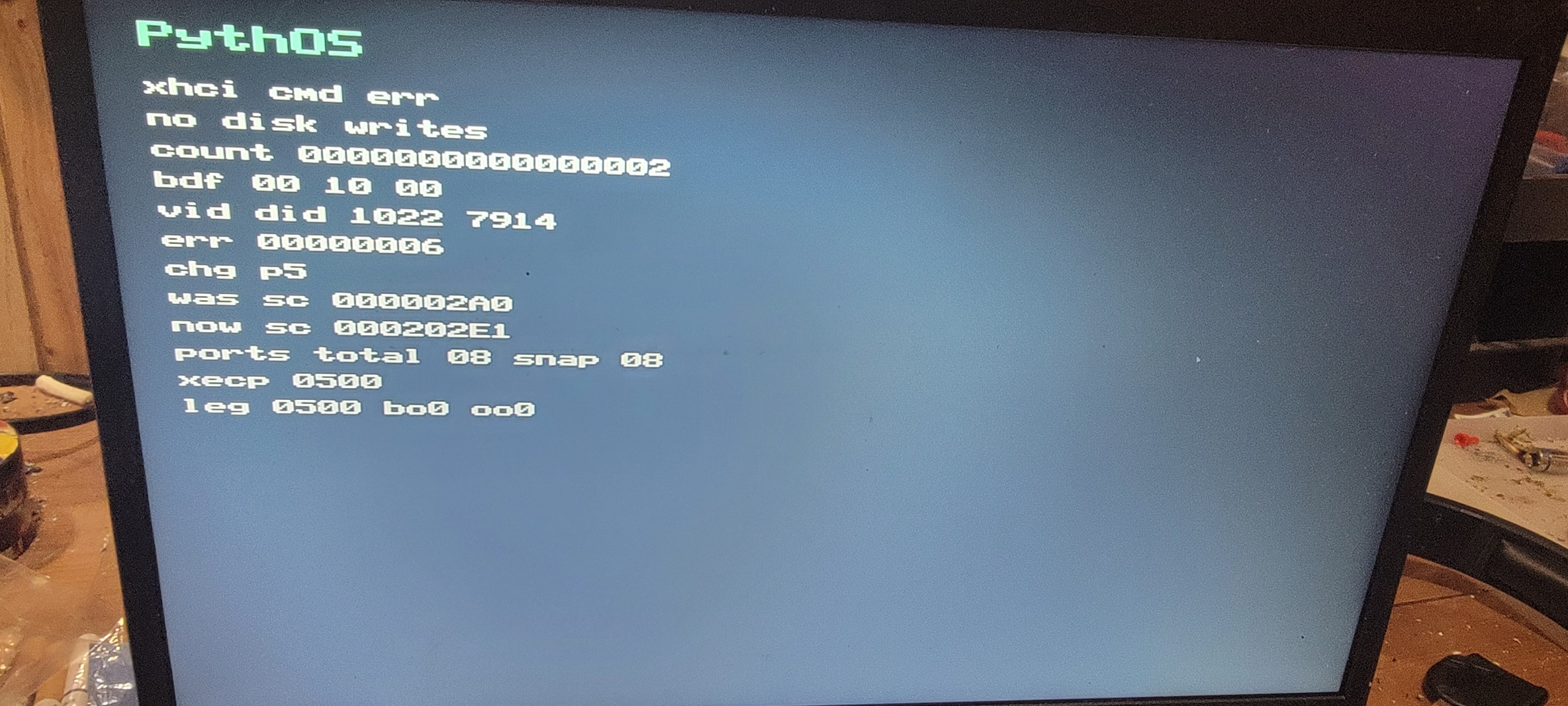

PythOS USB xHCI command probe showing error 00000006 after port 5 mouse connect on physical hardware — Physical framebuffer report from the first command-ring diagnostic attempt; the refreshed image now includes scratchpad support.

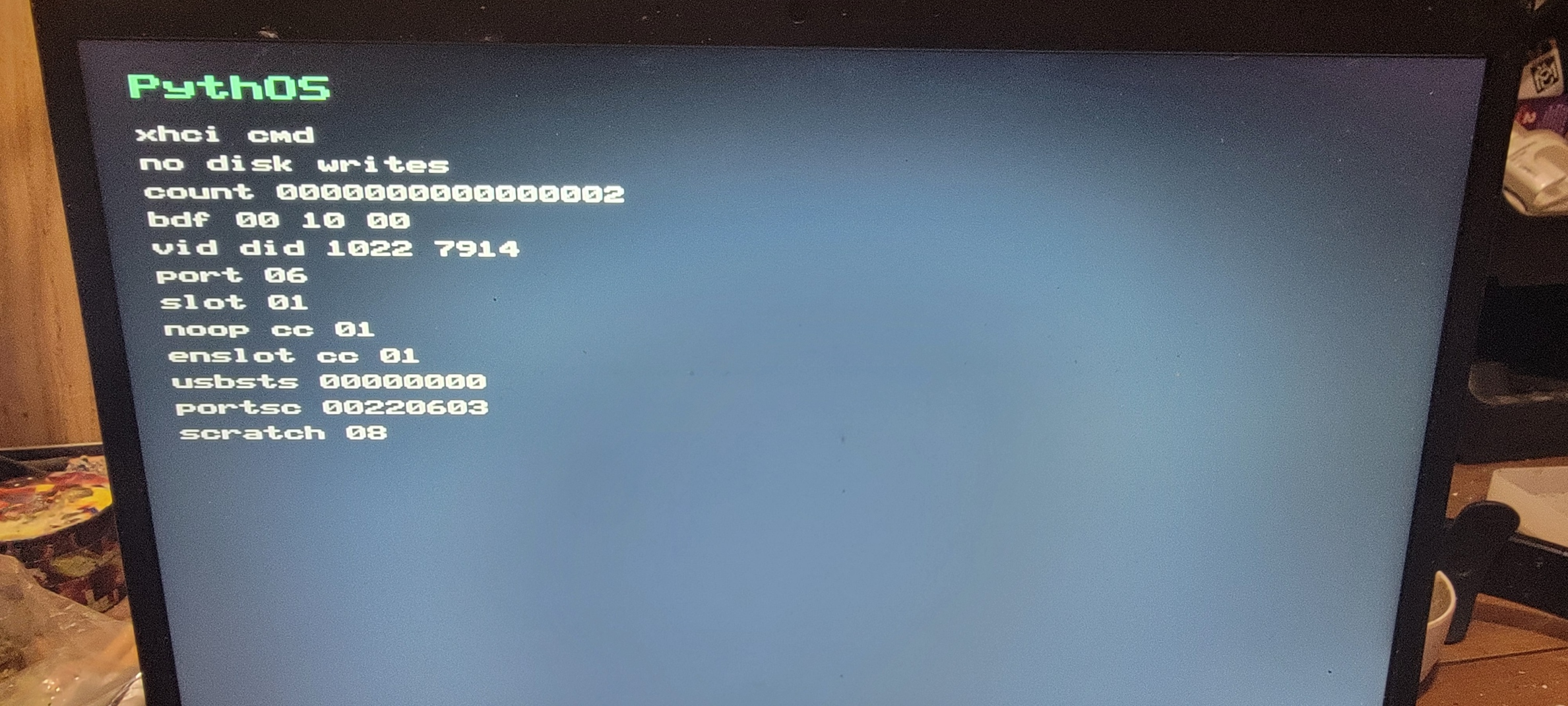

PythOS USB xHCI command probe showing No-op and Enable Slot completion on physical hardware — Physical framebuffer report from the scratchpad-enabled command-ring diagnostic success.

ADR 0081 defines the xHCI command-ring diagnostic boundary.

2026-09-01 QEMU, USB deployment, and physical Address Device success

xHCI Address Device Accepted On Hardware

The opt-in usb-xhci-address-probe image builds on the command-ring success path. It prepares xHCI input/output contexts, wires endpoint 0, issues one Address Device command, and reports the assigned address and context states while preserving NO_DISK_WRITES. The deployed image also reached the same Address Device success boundary on the physical AMD 1022:7914 controller.

qemu pass phys pass addr cc 01 dev addr 01 slot state 02 ep0 state 01 mps 0008

QEMU acceptance USB_XHCI_ADDRESS_PROBE_TEST_OK / QEMU_OUTCOME success

Observed QEMU address result Address Device CC 01, device address 01, slot state 02, EP0 state 01

Context setup context size 32, port speed 03, max packet size 0064

USB deployment verified P: Lexar D70E PYTHOS_ESP; USB_XHCI_ADDRESS_VERIFY_OK files:8 bytes:3977256

Deployed core SHA-256 E666859BFEE4FE6162690F3D8860E24992492441F859AEE6C8F4FC14DDBC3D53

Physical address result BDF 00 10 00, vendor/device 1022 7914, port 05, slot 01, No-op CC 01, Enable Slot CC 01, Address Device CC 01, device address 01, slot state 02, EP0 state 01, speed 02, context size 32, max packet size 0008, PORTSC 00220A03, scratchpad count 08

Physical success frame SHA-256 8A4D2D6D8F74AEE88D2B535F4447CBDC338E590944F0D8130E7B6FD6476A6D5A

No-write marker PYTHOS:CORE:USB_XHCI_PROBE:NO_DISK_WRITES

This is physical Address Device acceptance. It does not prove descriptor reads, HID parsing, endpoint polling, cursor movement, IRQ-driven input, or trackpad support.

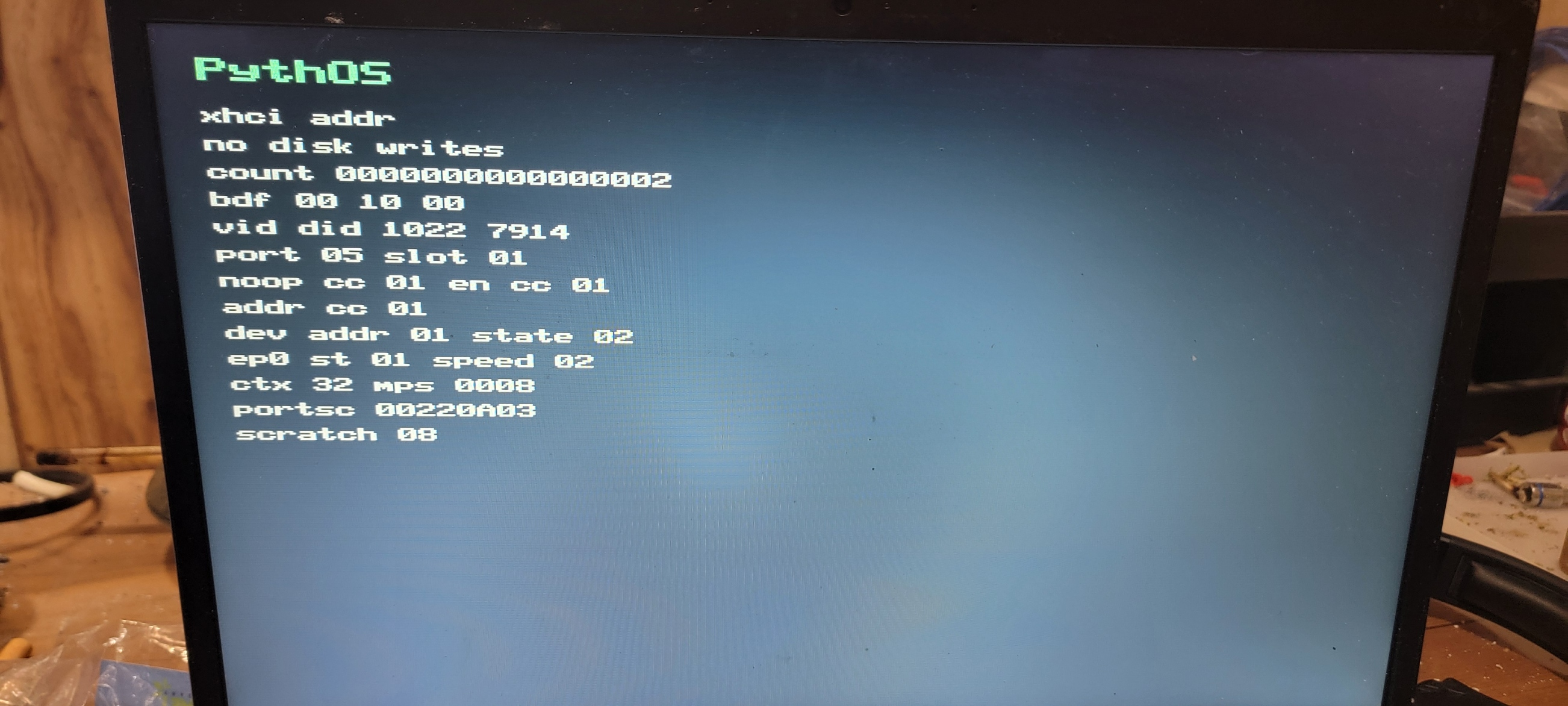

PythOS USB xHCI address probe showing Address Device completion on physical hardware — Physical framebuffer report from the Address Device diagnostic success.

ADR 0082 defines the xHCI Address Device probe boundary.

2026-09-01 QEMU, USB deployment, Linux target mapping, and physical photo

xHCI Device Descriptor Probe Accepted On Hardware

The opt-in usb-xhci-descriptor-probe image builds on the physical Address Device layer. It queues one endpoint-0 GET_DESCRIPTOR(Device) control transfer, reads the 18-byte device descriptor, and reports the descriptor completion code plus parsed descriptor fields while preserving NO_DISK_WRITES.

qemu pass phys photo pass usb deployed desc cc 01 len 12 type 01 qemu vid 0627 target vid 413c

QEMU acceptance USB_XHCI_DESCRIPTOR_PROBE_TEST_OK / QEMU_OUTCOME success

Observed QEMU descriptor transfer CC 01, length 12, type 01, USB BCD 0200, class/sub/protocol 00 00 00, MPS0 0040, VID/PID 0627 0001, config count 01

USB deployment verified P: Lexar D70E PYTHOS_ESP; USB_XHCI_DESCRIPTOR_VERIFY_OK files:8 bytes:3996680

Deployed core SHA-256 CFE2381F38DA91E11A31F021B315B4B12C030DB3F296C8B591BA6DF0A5289924

Linux target mouse map Dell/PixArt 413c:301a, path /sys/bus/usb/devices/2-1, low speed, MPS0 8, HID boot mouse 03/01/02, endpoint 0x81 interrupt IN, max packet 4, interval 10

Field-kit archive SHA-256 528058762026647AFA2D5FD94E6086128C6B4EDD88CE60880C573294AFA3006B

Physical descriptor result deployed descriptor screen shows xhci desc, no disk writes, BDF 00 10 00, vendor/device 1022 7914, port 05, slot 01, Address Device CC 01, descriptor CC 01, length 12, type 01, USB BCD 0200, device BCD 0100, class/sub/protocol 00 00 00, MPS0 008, config count 01, VID/PID 413C 301A, scratchpad count 08

Physical frame SHA-256 4204994560727C63A8F631A05CCECFA68C3FC20189E12A2834E621327FDA61B6

This is QEMU descriptor evidence, deployment evidence, Linux target descriptor mapping, and photo-backed physical descriptor acceptance. It does not prove configuration descriptor reads, HID parsing, cursor movement, IRQ-driven input, or trackpad support.

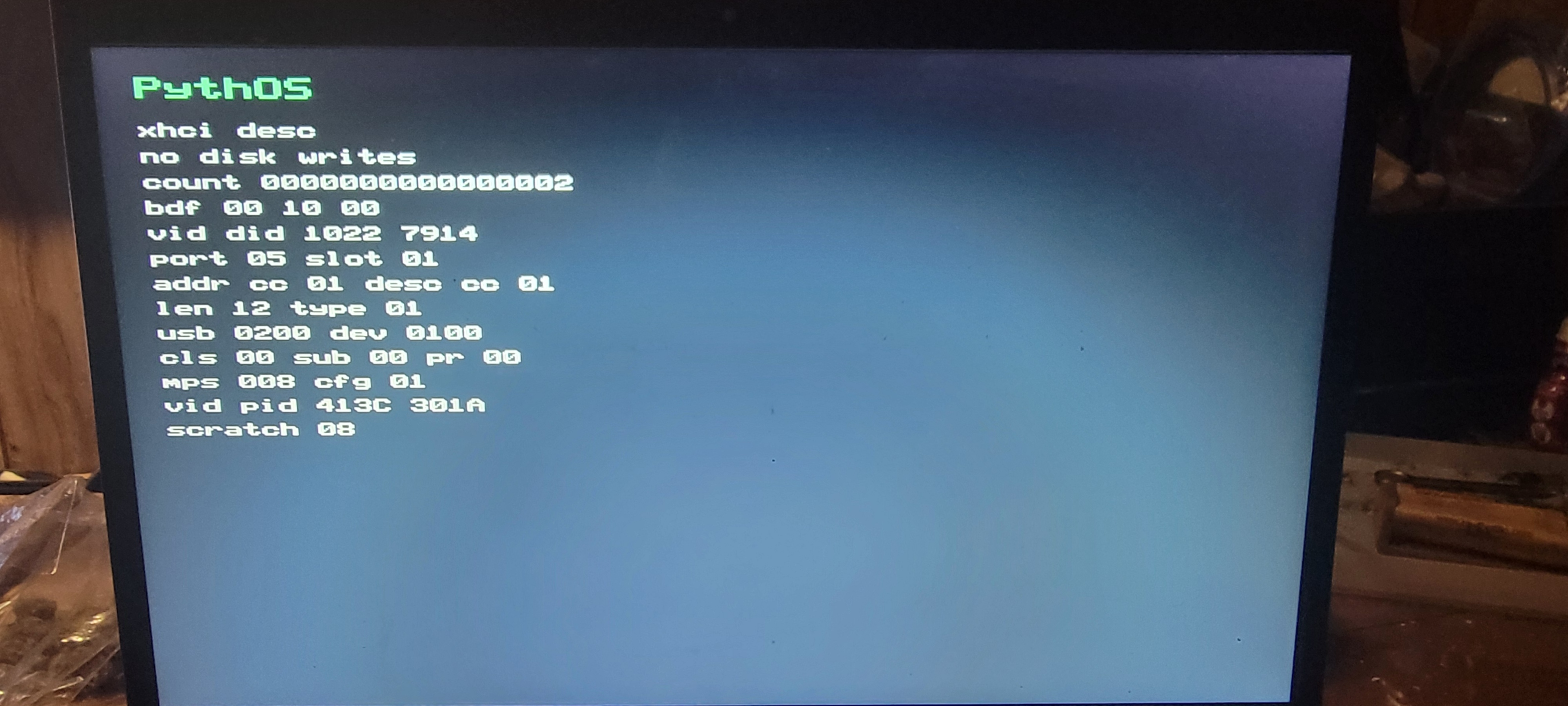

PythOS USB xHCI descriptor probe showing Dell mouse device descriptor completion on physical hardware — Physical framebuffer report from the Device Descriptor diagnostic success.

ADR 0083 defines the xHCI Device Descriptor probe boundary.

Download the returned Linux Mint USB mouse map archive.

2026-09-02 to 2026-09-03 QEMU and physical acceptance

xHCI Configuration Descriptor Completed On The Lenovo

The opt-in usb-xhci-configuration-probe image extends the Device Descriptor path with a bounded two-stage endpoint-0 read. It validates the nine-byte configuration header, caps wTotalLength at 256 bytes, reads exactly the validated total, and walks standard interface and endpoint descriptors.

qemu pass physical pass total 34 interface 03 01 02 endpoint 81 attributes 03 mps 4 interval 7

QEMU acceptance USB_XHCI_CONFIGURATION_PROBE_TEST_OK / QEMU_OUTCOME success

Transfer result header CC 01, full CC 01, total length 0022, configuration value 01, interface count 01

Parsed QEMU mouse HID boot mouse 03/01/02, interrupt-IN endpoint 0x81, attributes 0x03, max packet 4, interval 7

Physical attempt Lenovo 81VS reached the swap prompt, detected the mouse connect on port 06, then rendered xhci cfg err / generic timeout 0x0F

Refreshed diagnostic additive screen codes 0x2C..0x31 distinguish No-op, Enable Slot, Address Device, Device Descriptor, configuration header, and full configuration waits; diag cfg stage1 identifies the deployed image

Physical acceptance port 05, slot 01; Address Device, Device Descriptor, header, and full configuration completion codes all 01; total 34, value 1, HID boot mouse 03/01/02, endpoint 0x81, attributes 0x03, max packet 4, interval 10

Storage boundary NO_DISK_WRITES; the harness uses a disposable simulated USB-storage image only for boot-detach sequencing

This is QEMU and target-specific physical configuration-descriptor success for the Lenovo 81VS and Dell/PixArt mouse. It does not prove SET_CONFIGURATION, endpoint configuration, HID report parsing or polling, cursor movement, or trackpad support.

PythOS ADR 0084 swap prompt with frozen AMD xHCI port snapshot on the Lenovo physical target — First frame: boot USB still inserted at the required swap prompt.

PythOS ADR 0084 physical attempt showing mouse connect on port 6 and generic xHCI configuration timeout error 0x0F — Second frame: mouse connect detected after USB removal, followed by the pre-stage-diagnostic timeout.

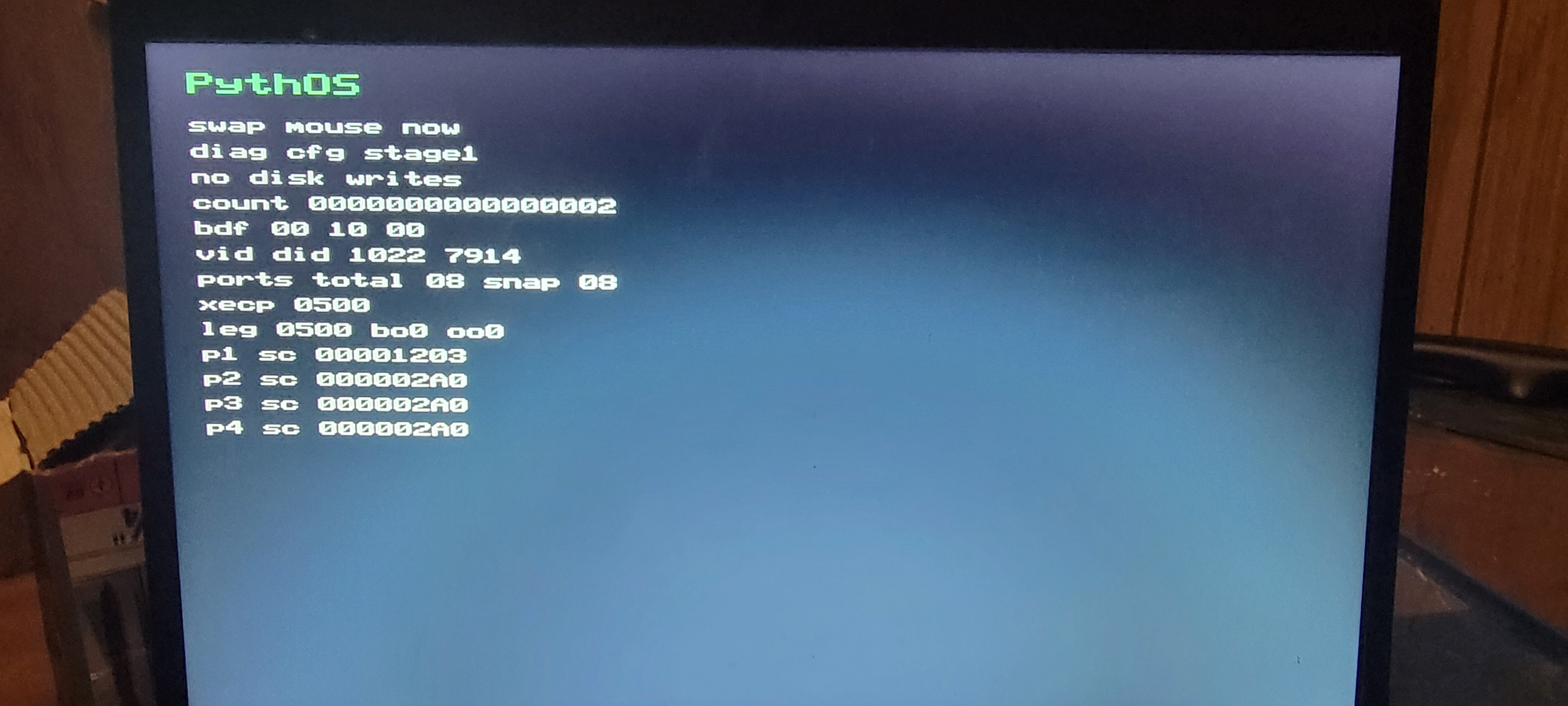

PythOS ADR 0084 staged physical image at the swap prompt with visible diag cfg stage1 identifier — Identified retry: the deployed staged image is proven before the USB handoff.

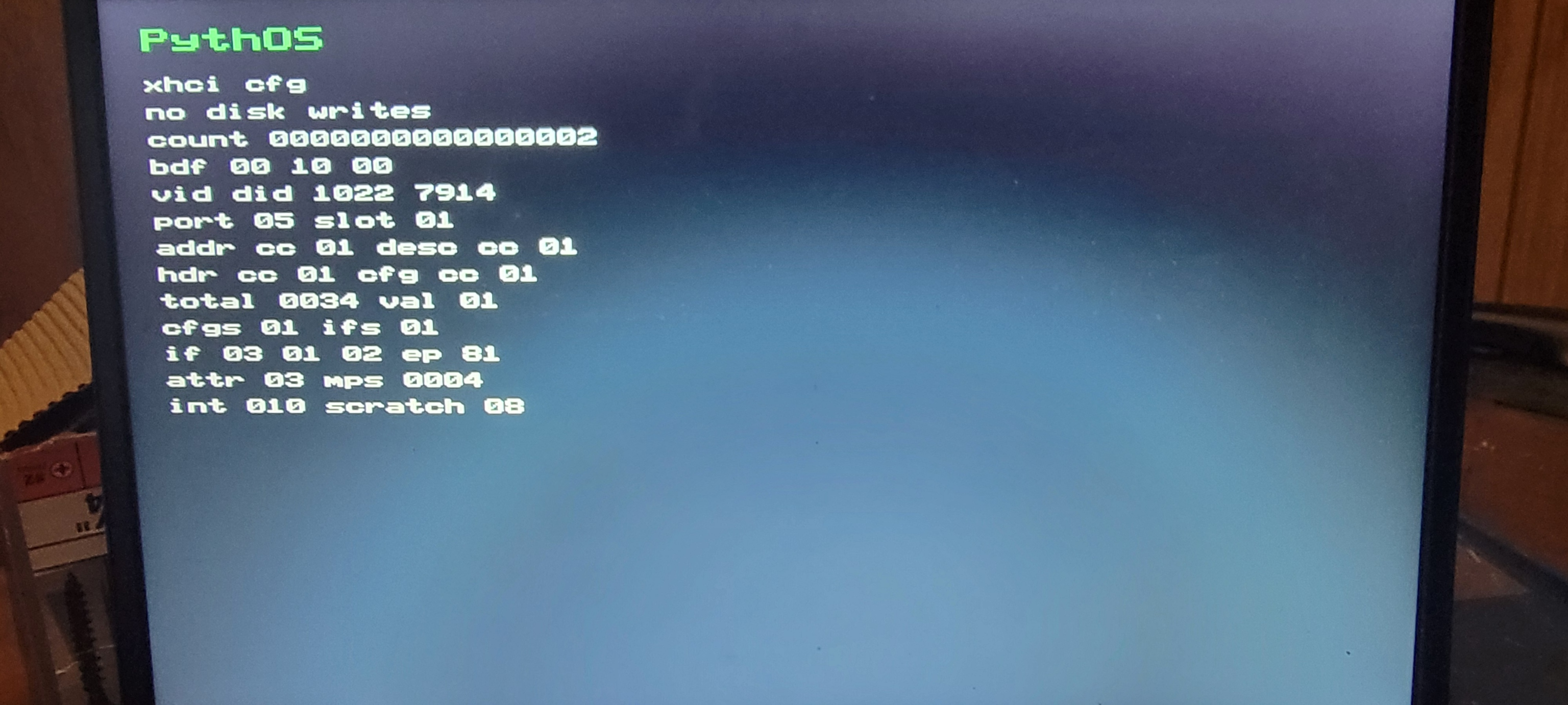

PythOS ADR 0084 physical configuration descriptor success for a boot mouse on port 5 — Physical success: all four completion codes are 01 and the Dell/PixArt boot-mouse endpoint metadata is parsed.

ADR 0084 defines the bounded Configuration Descriptor probe and its physical acceptance boundary.

2026-09-03 QEMU, deployment, and physical acceptance

xHCI Interrupt Endpoint Configured On The Lenovo

The opt-in usb-xhci-endpoint-configuration-probe image converts the physically discovered boot-mouse endpoint metadata into a Running xHCI Endpoint Context, then sends USB SET_CONFIGURATION(1). It deliberately stops before an interrupt transfer is submitted.

qemu pass physical pass endpoint 81 / DCI 03 slot 03 endpoint state 01 writes 0

Physical target Lenovo 81VS, AMD xHCI 1022:7914 at BDF 00:10.0, port 05, slot 01

Endpoint context interrupt-IN endpoint 0x81, DCI 03, interval encoding 06, max packet 4

Completion result Configure Endpoint CC 01, SET_CONFIGURATION CC 01, configured Slot state 03, configured Endpoint state 01

Prerequisites Address Device, Device Descriptor, configuration header, and full configuration completion codes all 01; scratchpad count 08

Power observation the external mouse illuminated; this establishes USB port power only

Storage and input boundary no disk writes and no interrupt poll

This is target-specific physical endpoint/device-configuration acceptance for the Lenovo 81VS and Dell/PixArt mouse. It does not prove an interrupt transfer, HID report parsing, cursor movement, shell input, IRQ delivery, trackpad input, or generic USB support.

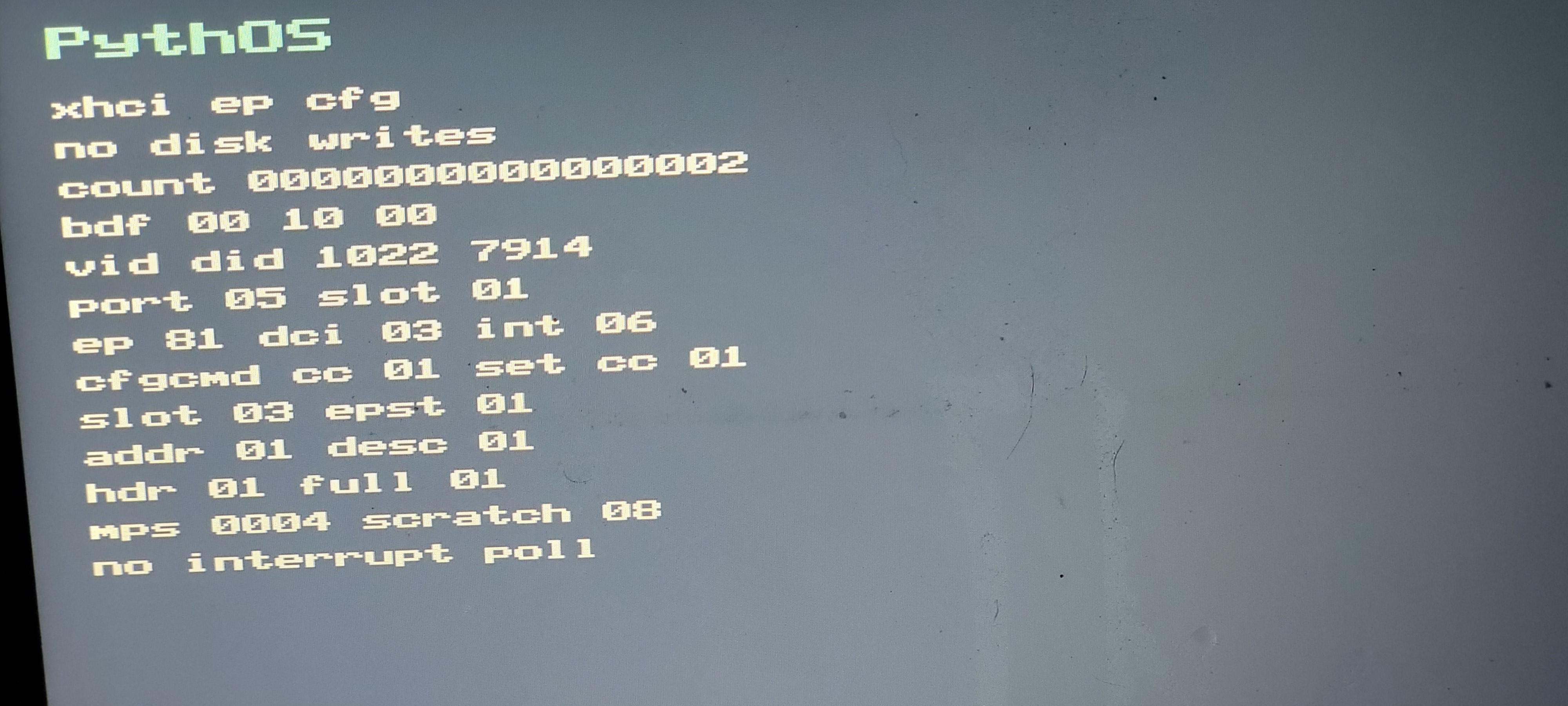

PythOS ADR 0085 physical endpoint configuration success on the Lenovo with Configure Endpoint and Set Configuration completion codes 01 — Physical success: endpoint 0x81 is Running, the device is Configured, disk writes remain disabled, and interrupt polling has not begun. SHA-256: 09426FBBF3DC904BAC52DF7C7974F70FF4477751CB05FC141A837E93E35D5548.

ADR 0085 defines the bounded Endpoint Configuration probe and its physical acceptance boundary.

Physical evidence gallery

313 Ordered Markers Across Five Pages

The 2026-08-08 physical evidence-terminal capture reports count 00000139 across five terminal pages. The formatter displays count as hexadecimal, so 0x139 is 313 decimal markers, not 139. Every page reports zero dropped markers and CRC 176F4C6E. The evidence-terminal implementation, feature flag, and QEMU acceptance harness are present on main.

pages 05 count 00000139 hex / 313 dec drop 00000000 crc 176F4C6E

Two separate physical boots produced the same count, zero-drop state, and CRC. Reconstructing the hardware stream from the current QEMU stream plus the observed audio, hardware-discovery, and persistent storage-path differences produces exactly 313 markers and recomputes to CRC 176F4C6E.

The physical and QEMU transcripts are not required to be textually identical: truthful hardware discovery and existing persistent-storage state can select different accepted marker branches. CRC-32 repeatability is strong reproducibility evidence, not collision-proof proof of byte-for-byte identity. These markers also do not claim production completeness or broad hardware support.

Read the physical validation record, hardware-path differences, and artifact hashes.

PythOS evidence terminal page 1 of 5 — Evidence terminal page 1/5 - loader, kernel, exceptions, controllers, scheduler, shell.

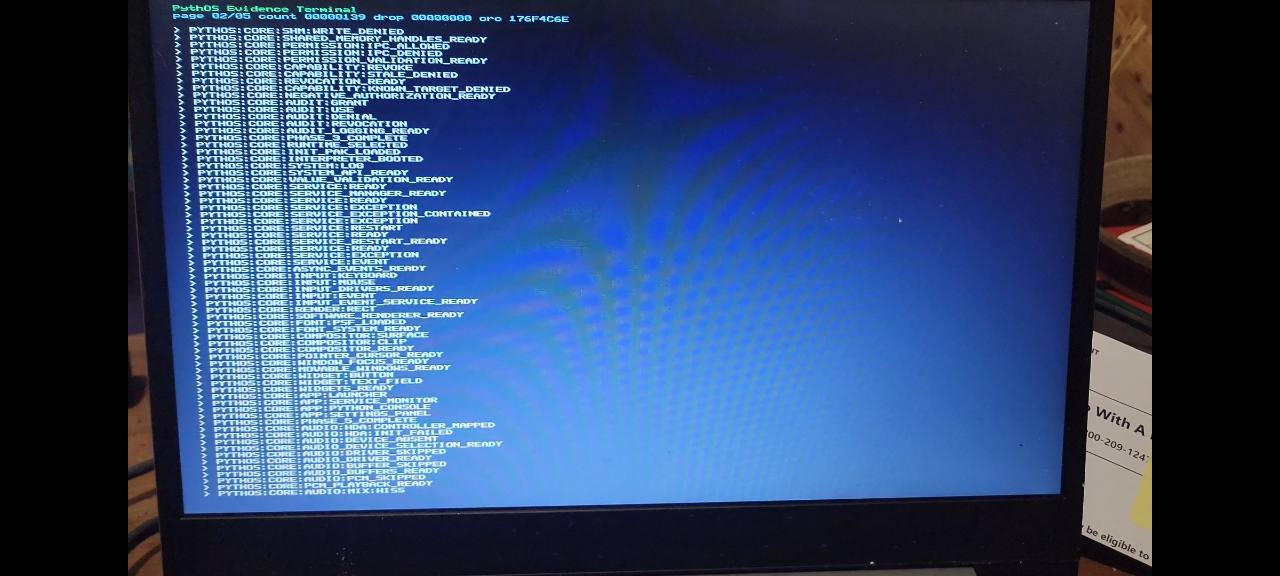

PythOS evidence terminal page 2 of 5 — Evidence terminal page 2/5 - permissions, capability checks, audit log, runtime, input, UI, and audio markers.

PythOS evidence terminal page 3 of 5 — Evidence terminal page 3/5 - storage grants and denials, append-only journal, crash recovery, typed object persistence.

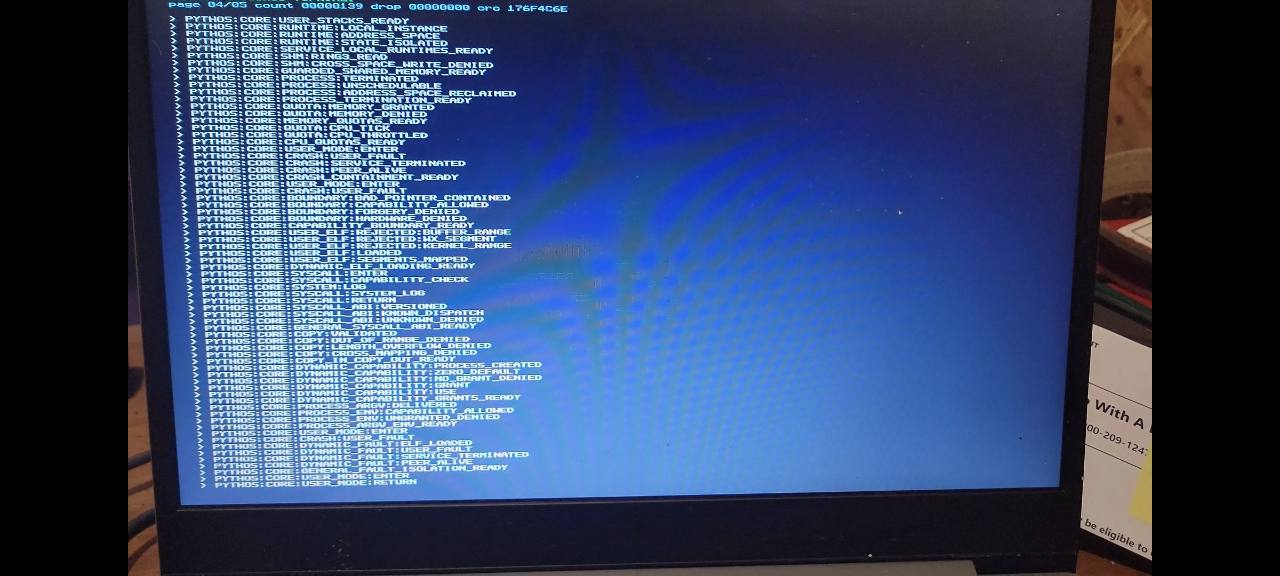

PythOS evidence terminal page 4 of 5 — Evidence terminal page 4/5 - user-mode boundary tests, syscall checks, copy validation, dynamic capability tests.

PythOS evidence terminal page 5 of 5 showing Phase 10 completion — Evidence terminal page 5/5 - adversarial storage suite, Phase 10 completion, SDHCI/eMMC framebuffer acceptance.

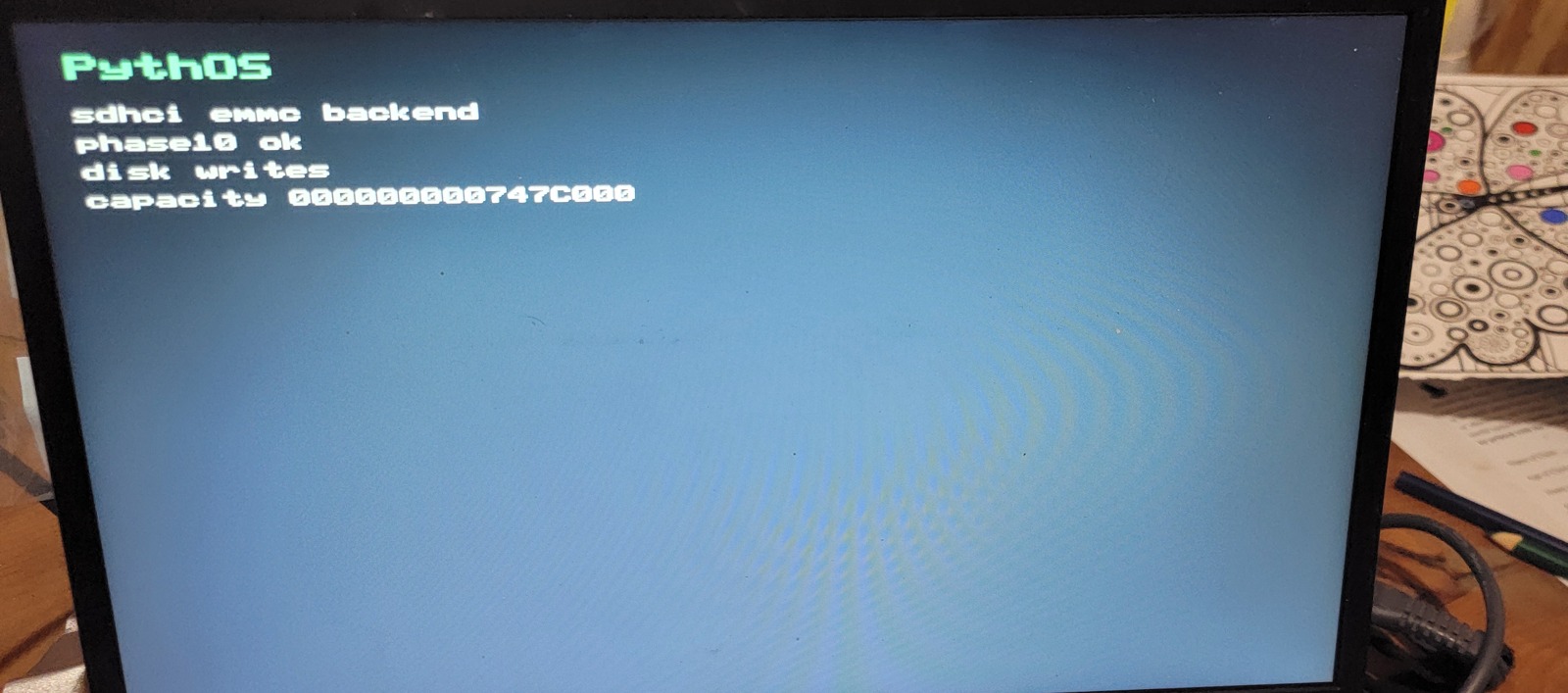

First PythOS physical SDHCI eMMC backend acceptance panel — First-run committed frame SHA-256: 0E804EC38610BFF3AD982737EBF02E432DBC3B0858A573B4E1753D9611A55732

Second PythOS physical SDHCI eMMC backend acceptance panel — Second-run committed frame SHA-256: 7B8D115E4D7D1E3FC9DF1077F2A4F69DCB28372CF03E157FF6EBF6510609EC25

Release Assets

2026-08-26 physical wake clip

Raw video is retained outside git and identified above by exact byte size, duration, and SHA-256. The acceptance frame is stored in-repo for Pages.

2026-08-08 terminal photos

Five original physical page photos are hashed in the validation record and are intended for the Milestone 1 release asset set.

2026-08-08 continuous boot video

Raw SHA-256: 01AA80BC02F1225D5B9E543A24B4EB96A8584BE15646EE258970C13BABE85979

Earlier Phase 10 panel

sdhci emmc backend, phase10 ok, disk writes, capacity 000000000747C000.

Open release assets
